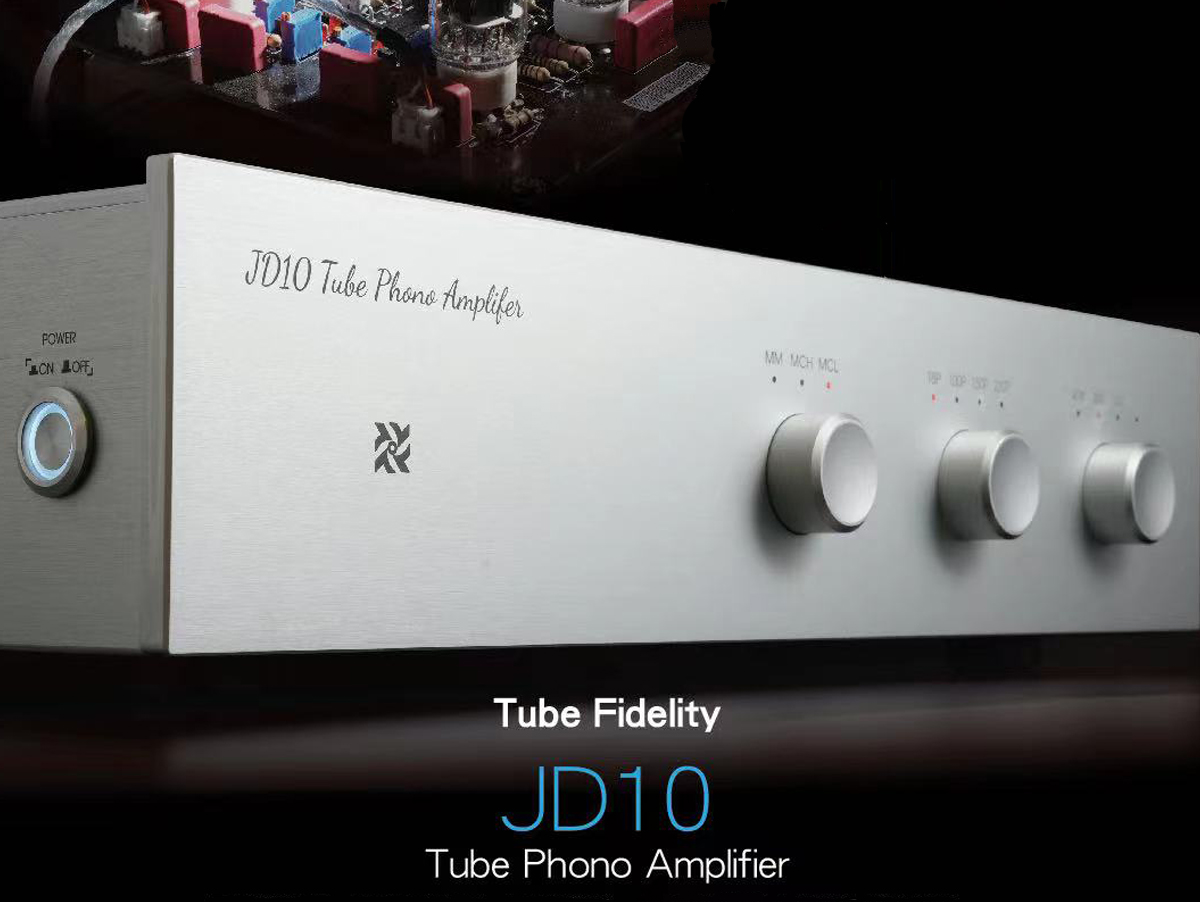

JD10
Tube Phono Amplifier
Stylus Input Signal: MM/MCH/MCL

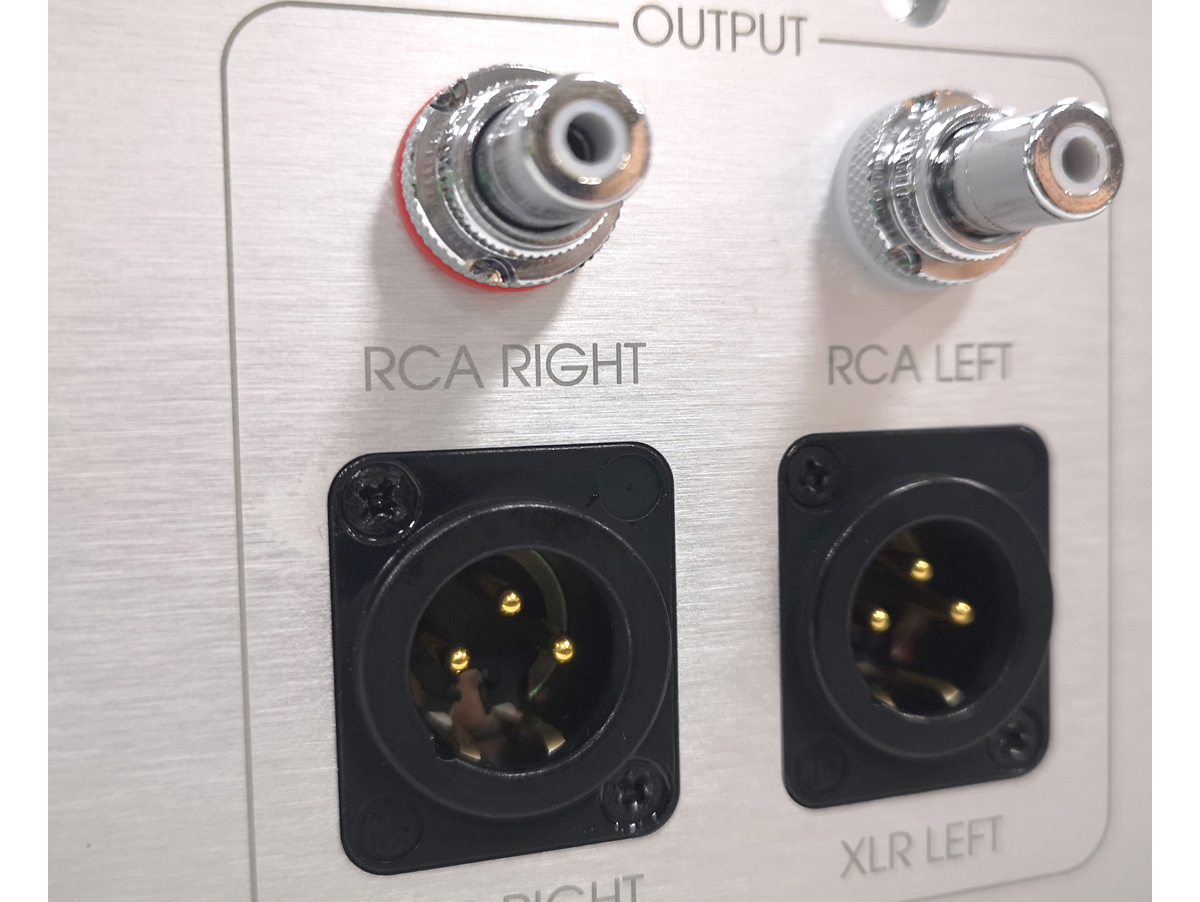

OUTPUT Signal:
RCA: MM: 5mV 3Vrms
MCH:0.5mV 0.8Vrms
MCL: 0.05mV 0.15Vrms
XLR: MM:5mV 6Vrms
MCH: 0.5mV 1.6Vrms
MCL:0.05mV 0.3Vrms
Maximum Undistorted Output: 25Vrms
Overall gain:
RCA MM 56dB, MCH 64dB,MCL 69dB
XLR MM62dB, MCH 70dB,MCL 75dB
Frequency Response: 10Hz to 100 KHz, (+/- 0.4dB)
Signal noise ratio:≥74dB (A Weighting:80dB)
Dynamic Range: ≥90dB
Distortion and Noise: 0.12% @ 1kHz @ Rated Output Level
Output Impedance: <100 ohms
Sound Channel: Stereo/Mono
Equal Reduction Curve: RIAA
RIAA Accuracy of Equalization: ±0.1dB 20Hz-100KHz 1KHz 0db

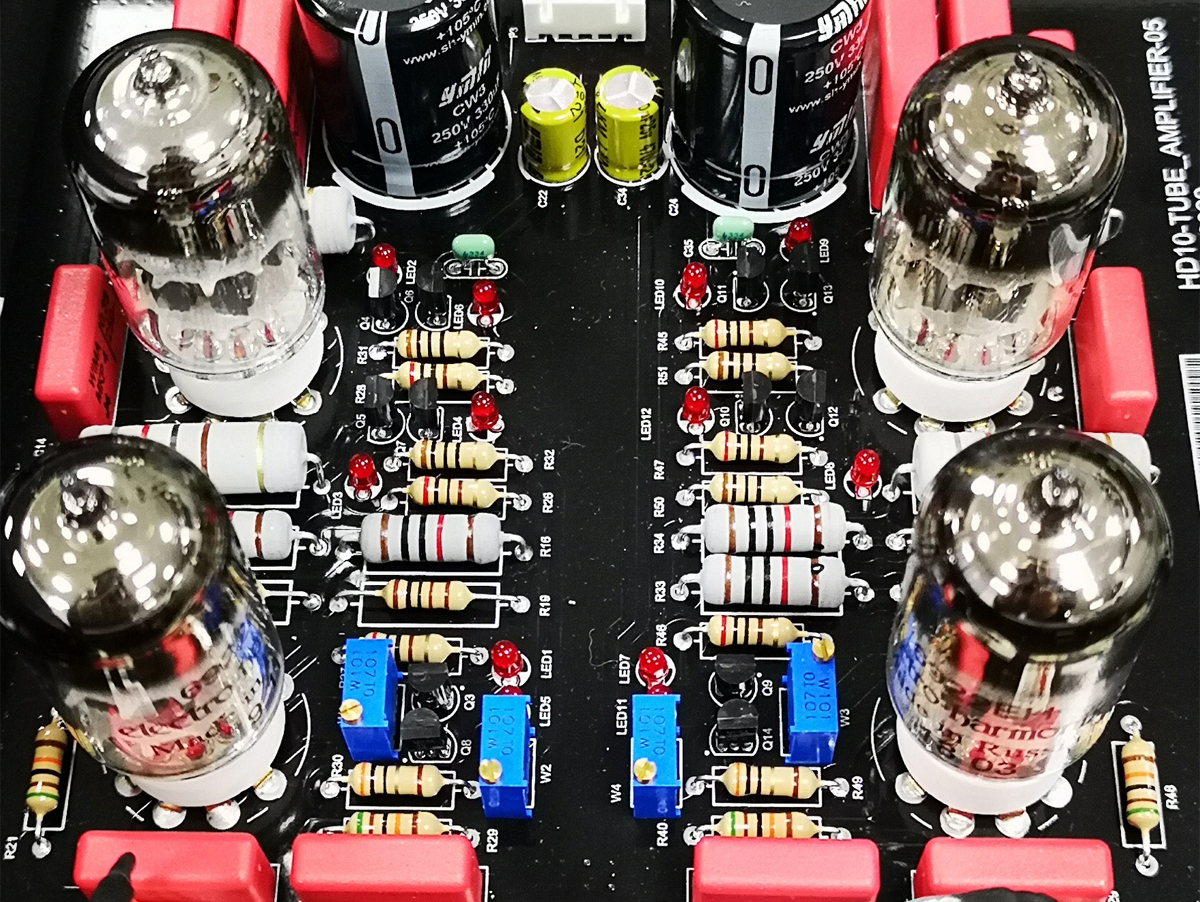

Use of Tube: 6922*4Pcs

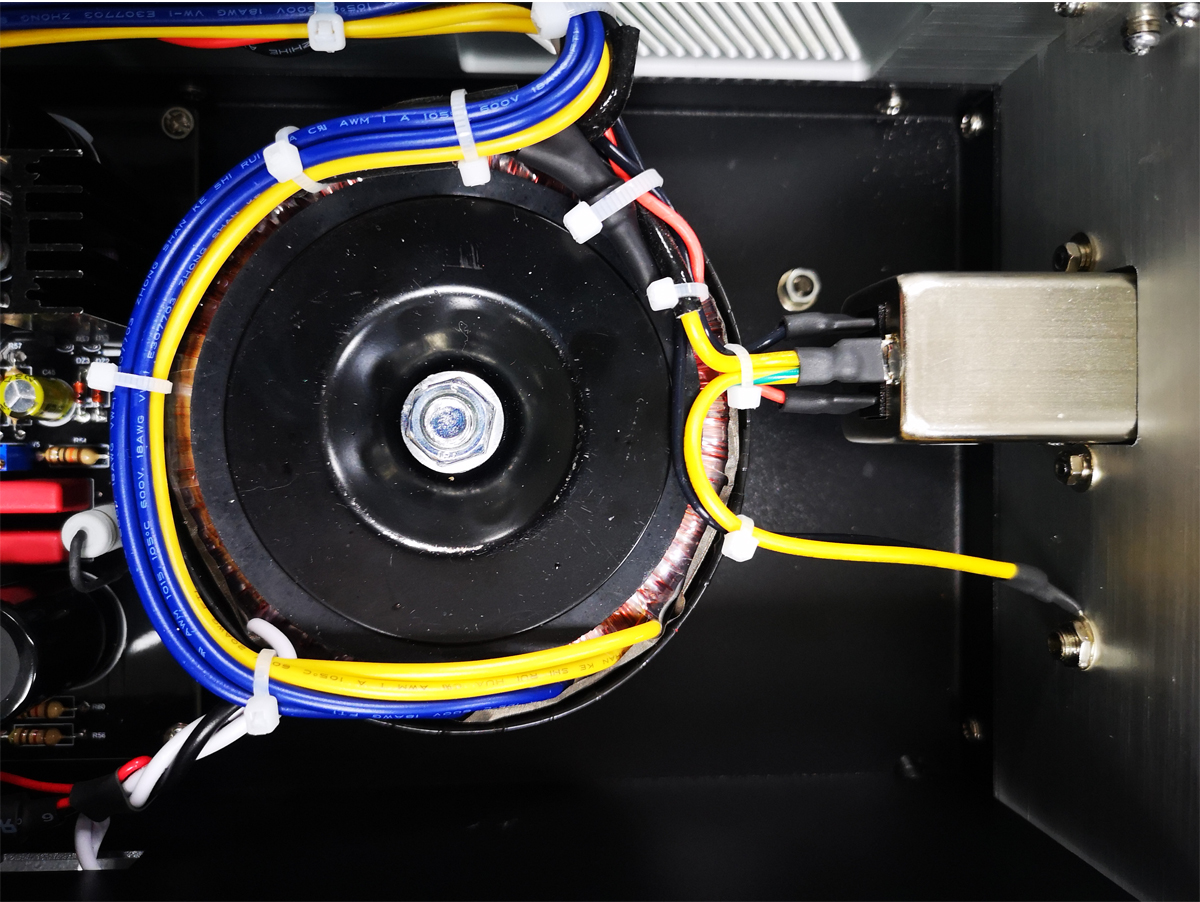

Power Supply: 220-230VAC/100-115VAC 50/60Hz
Total Power Consumption: 40W
Weight: 9kg(N.W.) 15kg(G.W.)
Product Size: 430mm(W)*342mm(D)*105mm(H)
Package Size: 580mm(W)×480mm(D)×230mm(H)
